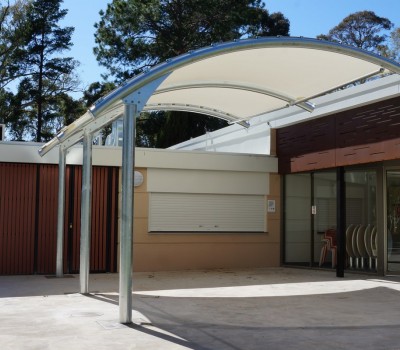

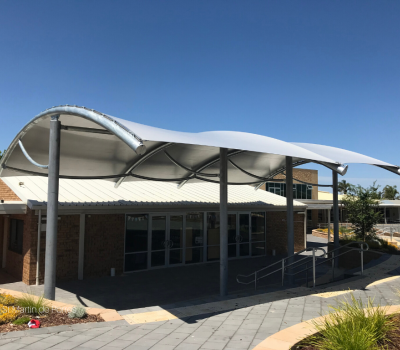

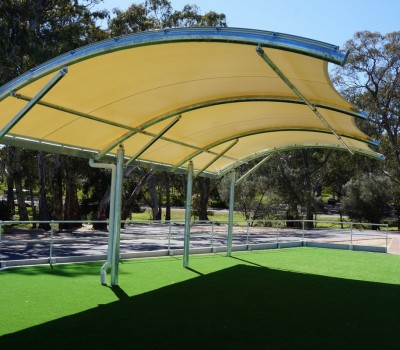

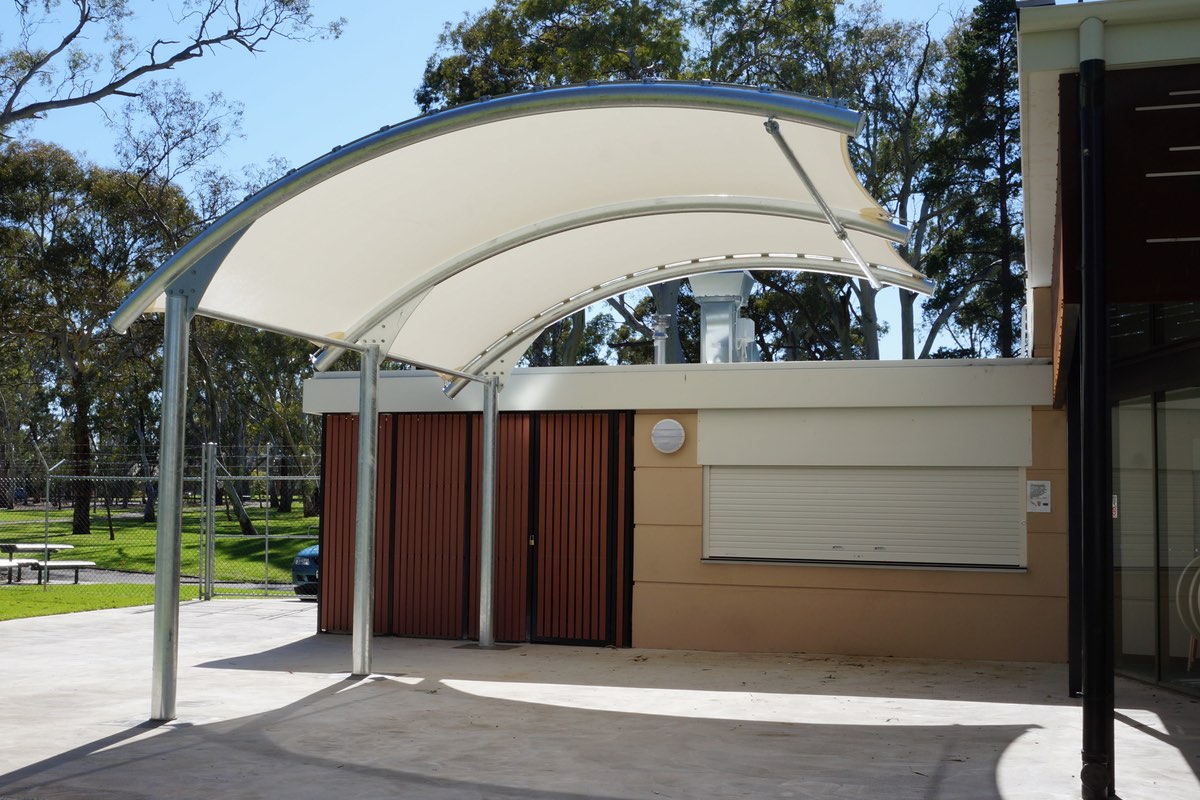

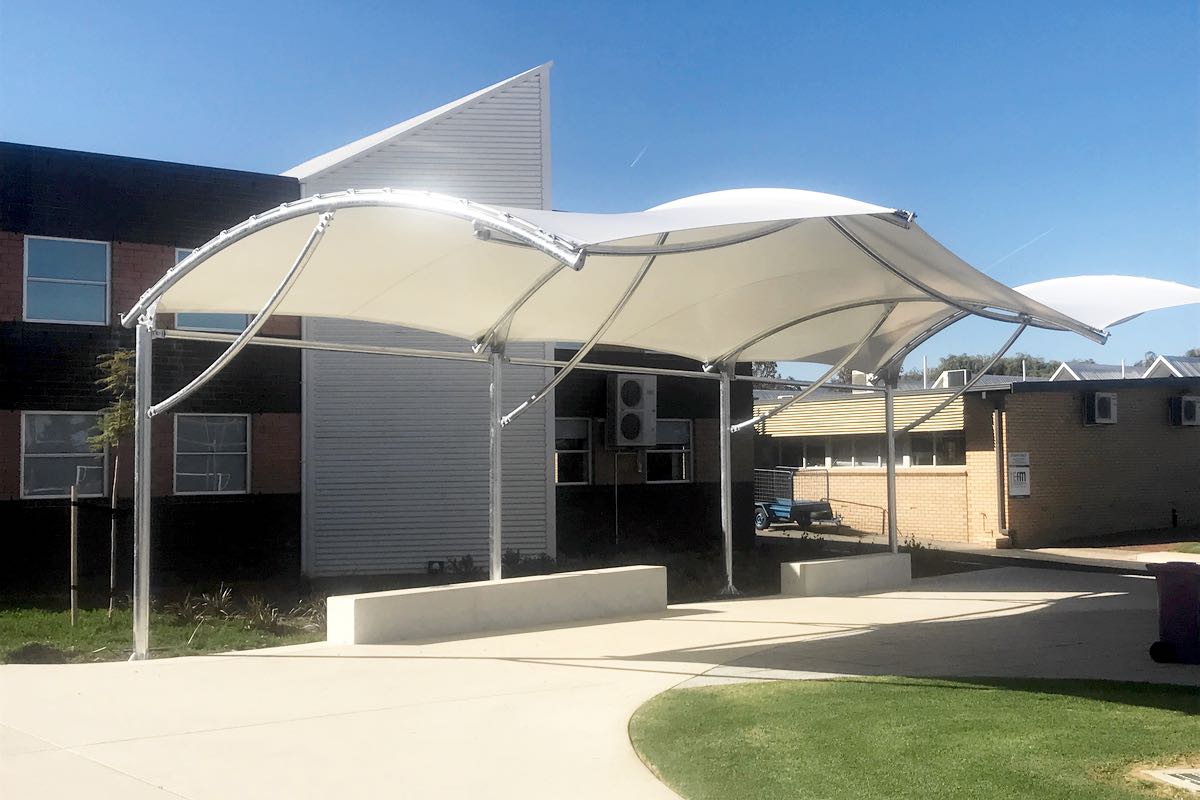

Cantilever Structures

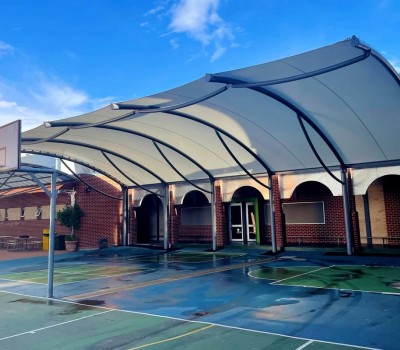

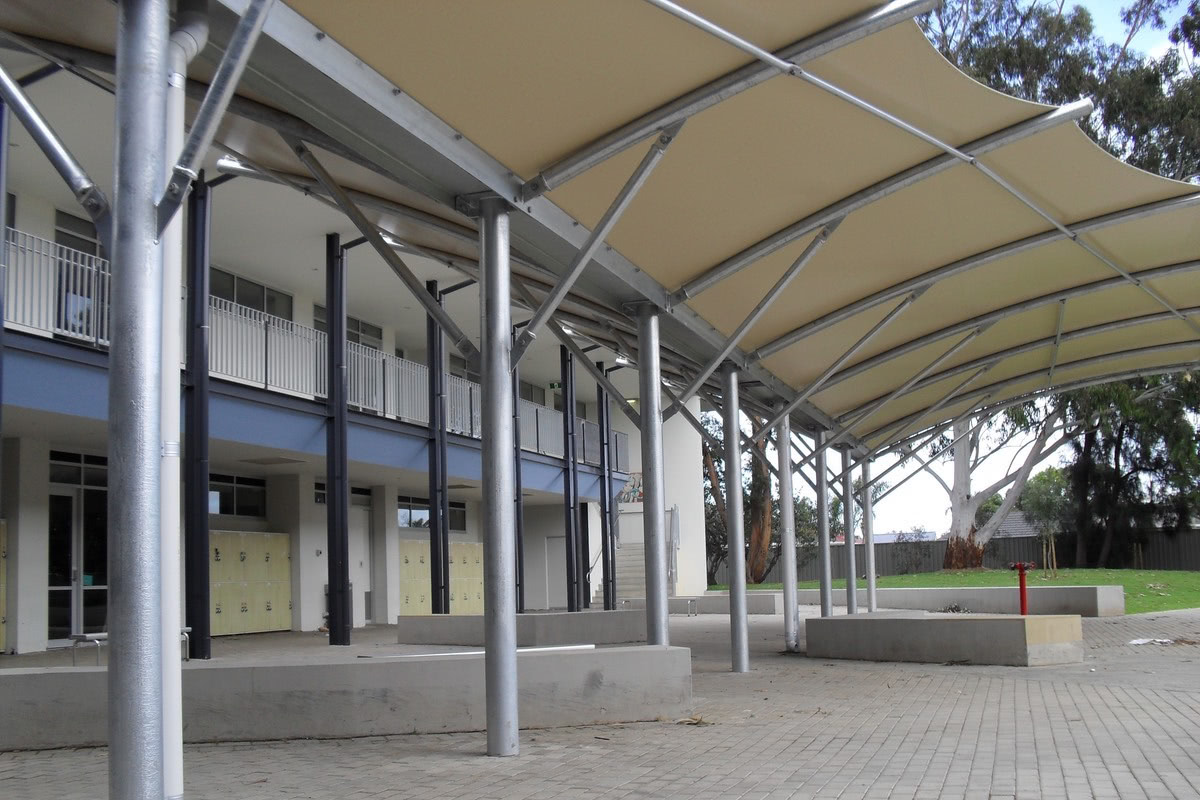

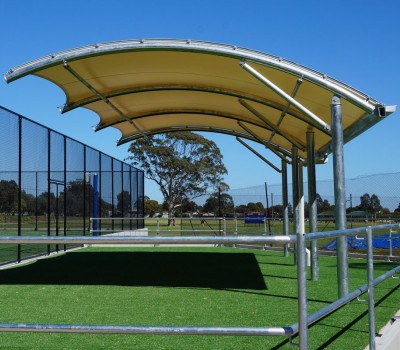

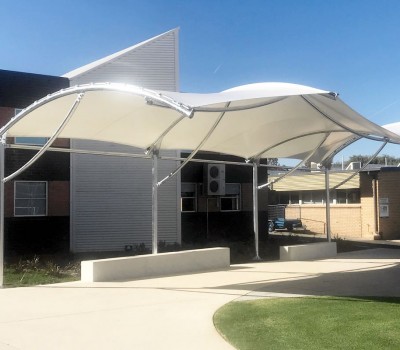

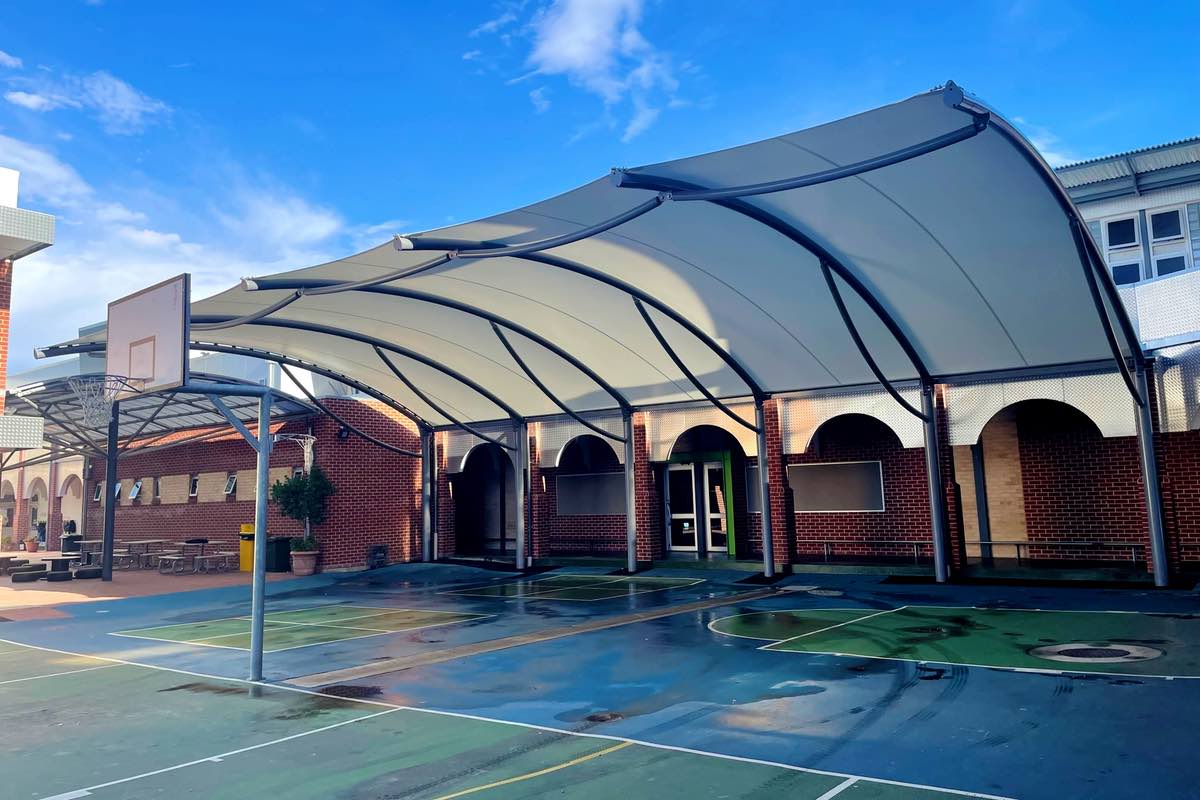

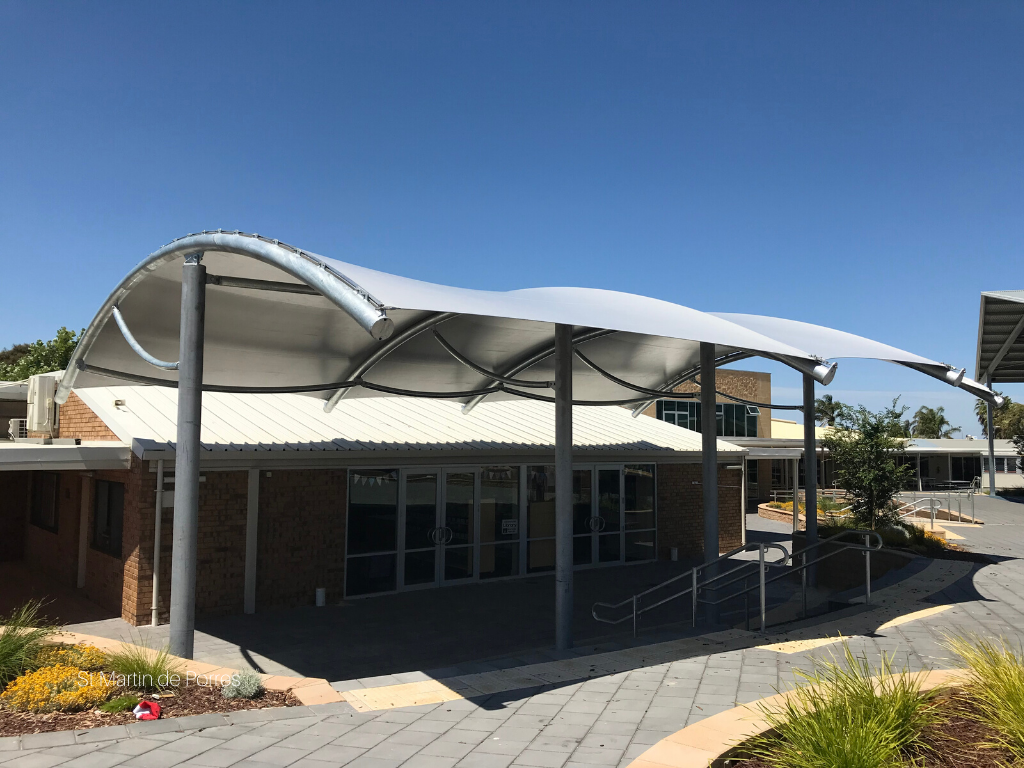

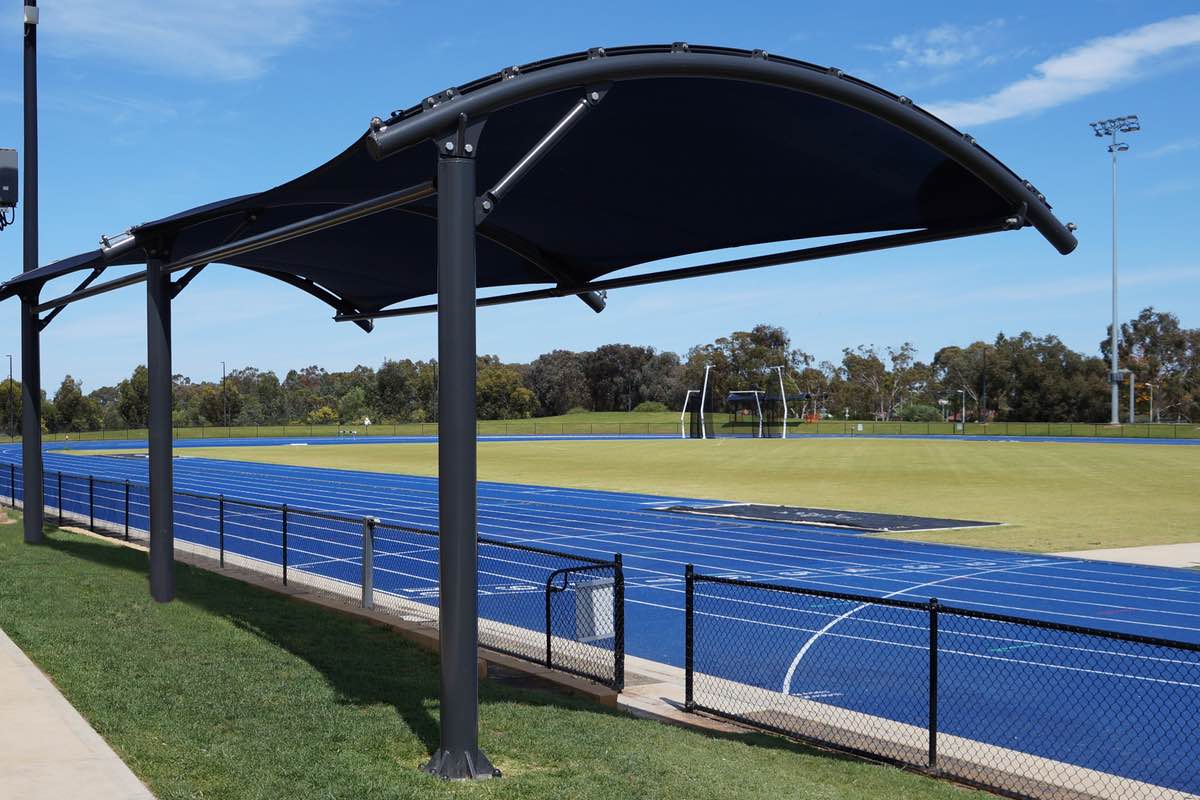

Strong, modern and flexible in design, cantilever structures have a single row of columns and project out to provide shade and shelter. Ideally suited to area where additional columns may restrict usable space. Custom designed and engineered with either single cantilever or double bird wing style projection.

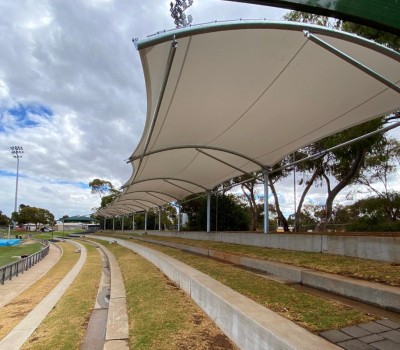

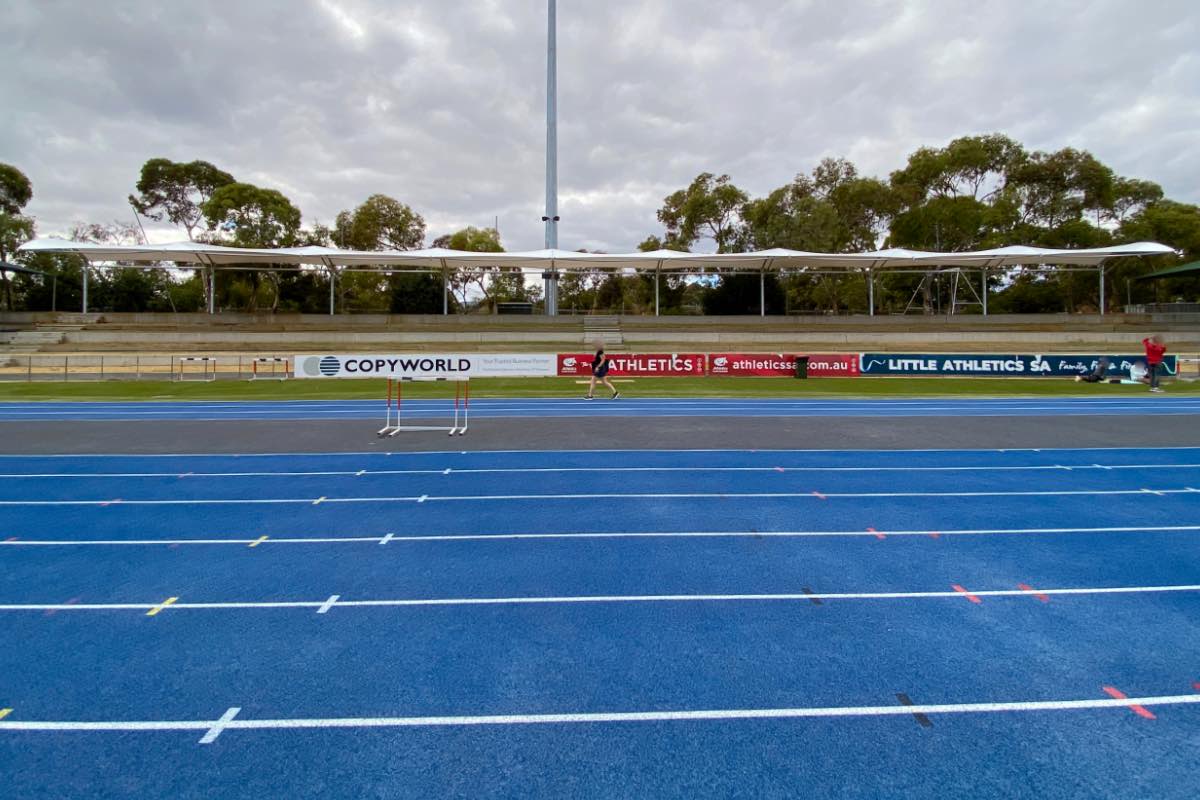

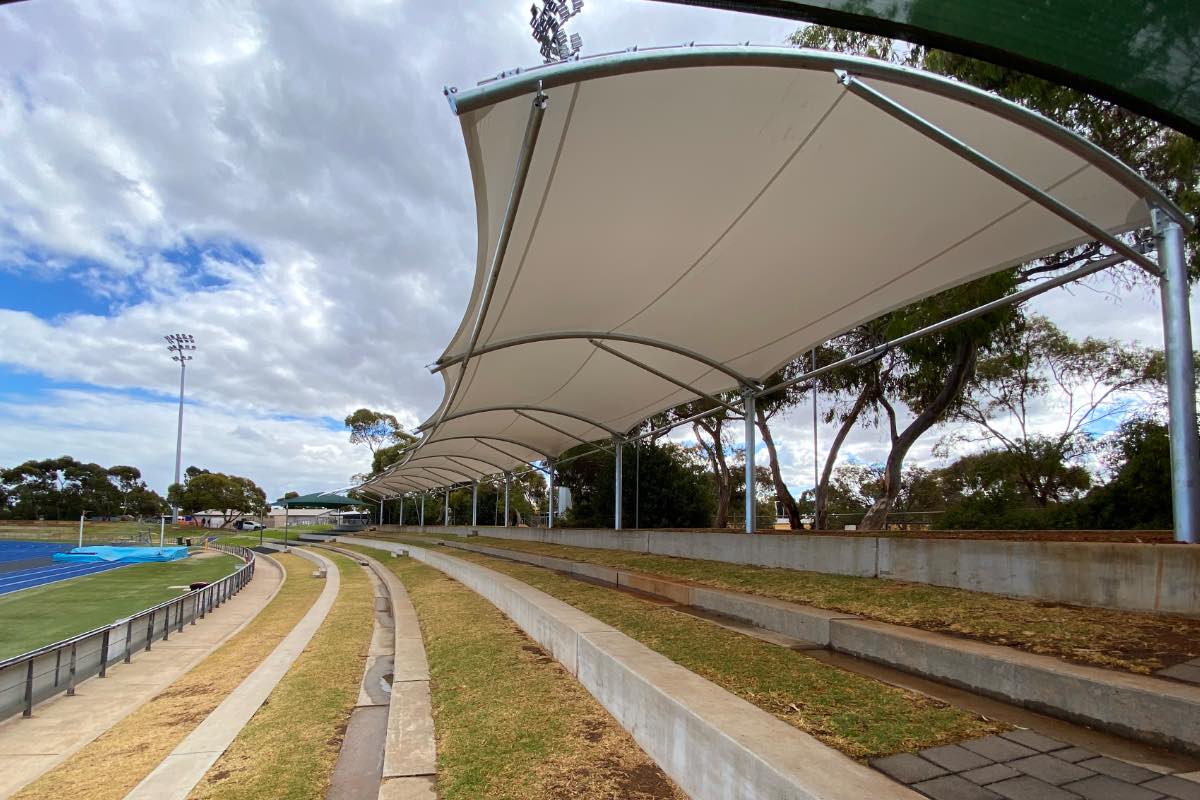

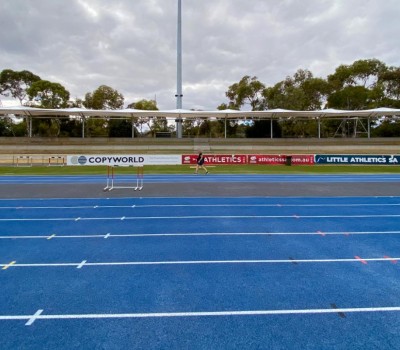

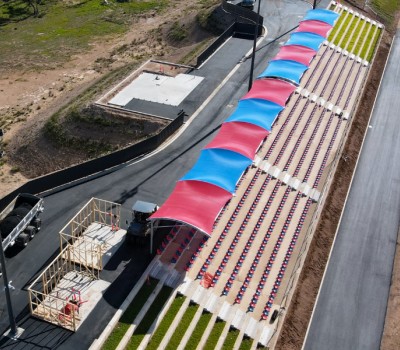

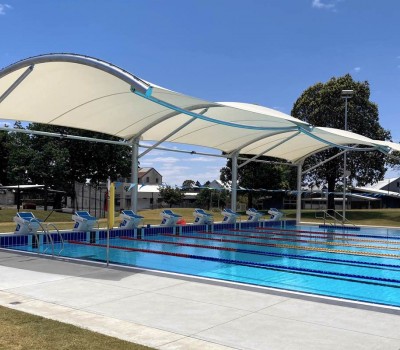

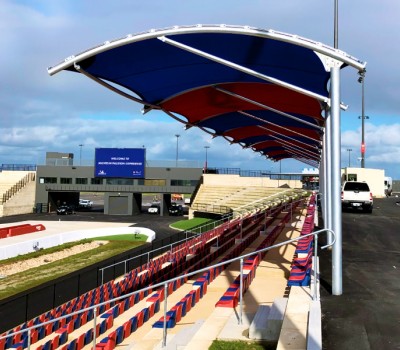

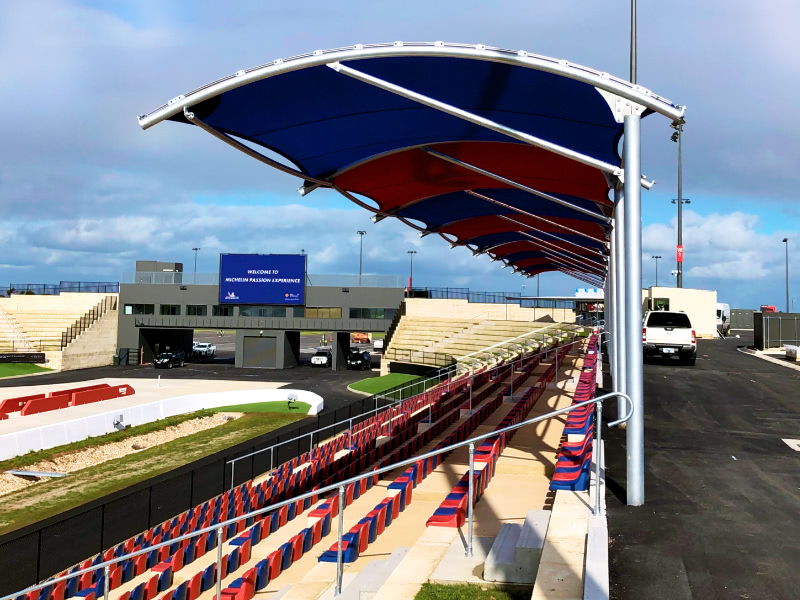

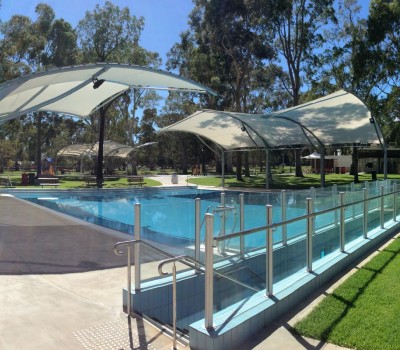

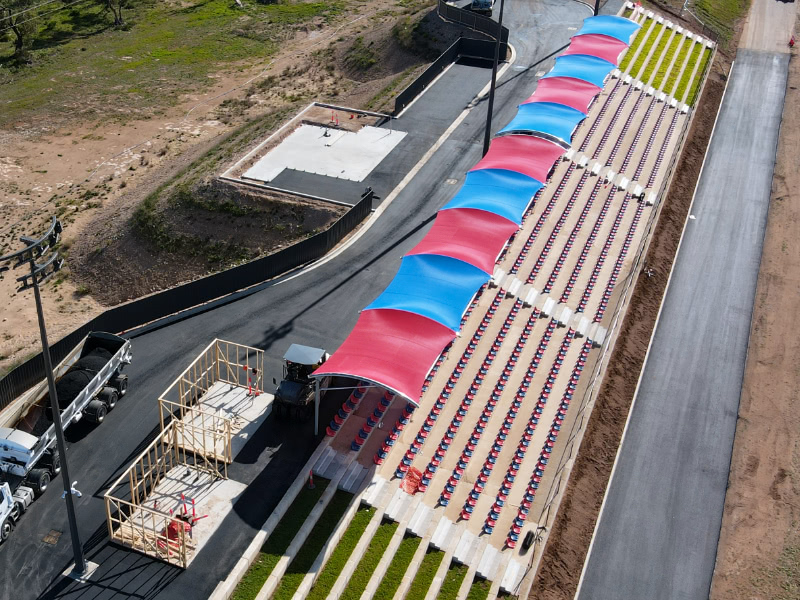

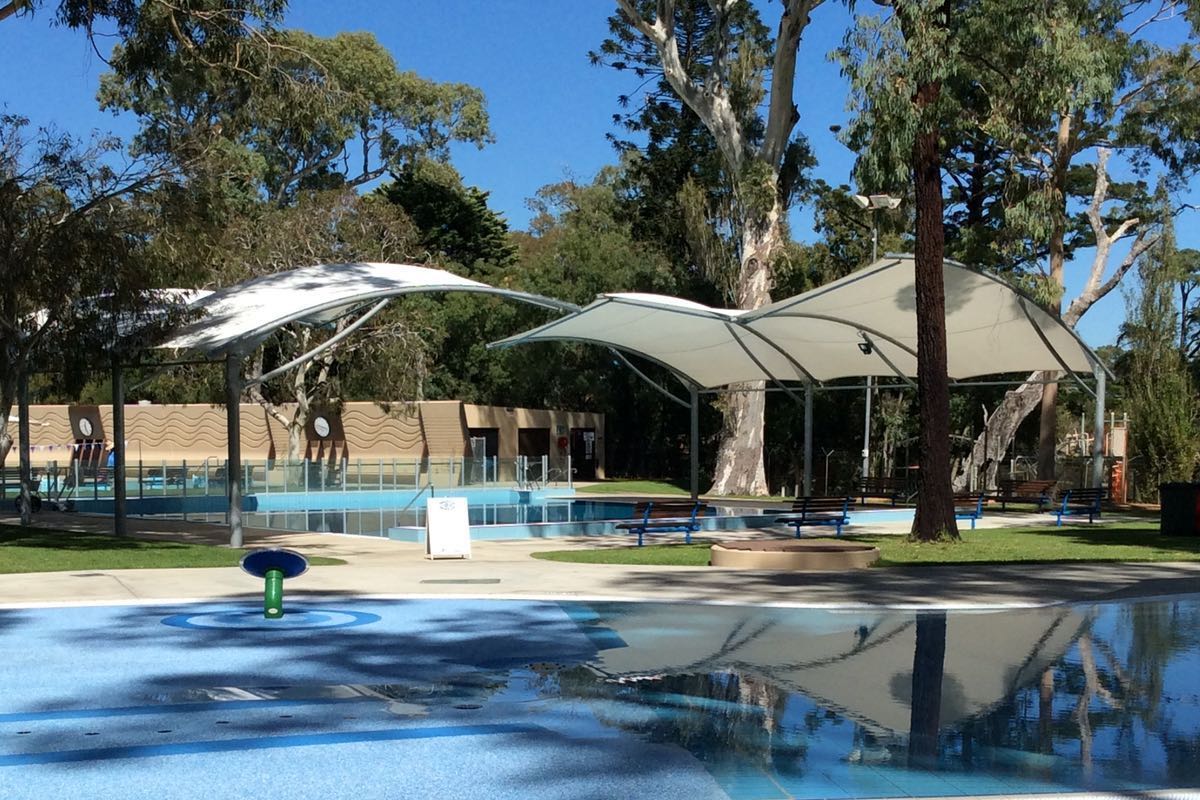

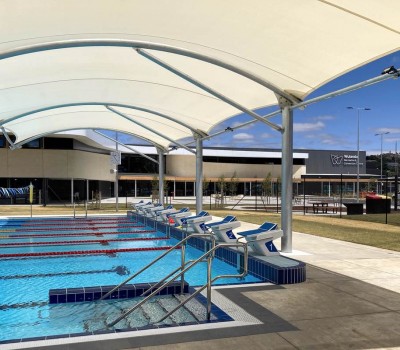

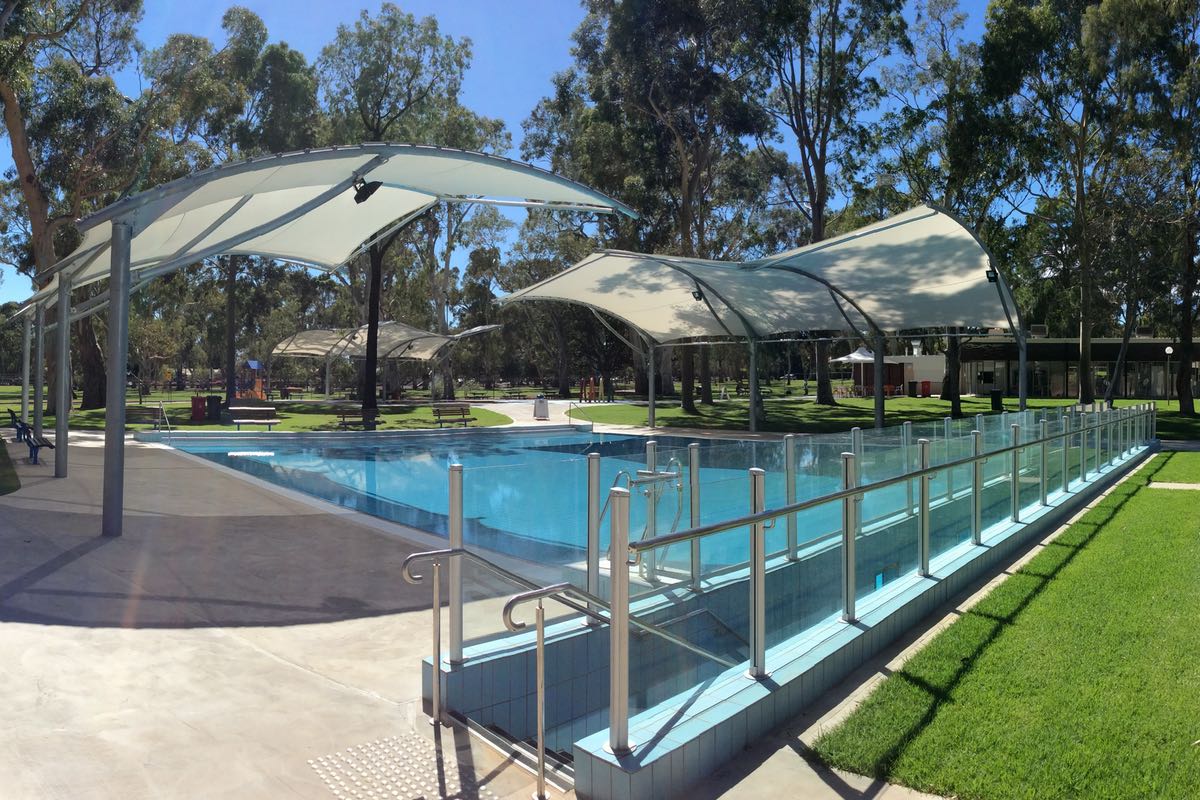

We have the ability to engineer and design very specific shelters such as wide cantilevers over swimming pools and grand stands. Choose from a wide range of shade and water proof fabrics, and steel can be supplied in either galvanised or powder coated finishes.

Spans up to 10m or more are achievable and the length is only limited by available space. Our cantilever structures are individually designed and engineered to suit your site, design and budget requirements. Strong steel frames are available in hot dipped galvanised or optional powder coat finishes. Shade or waterproof fabrics are available in hundreds of different colours.

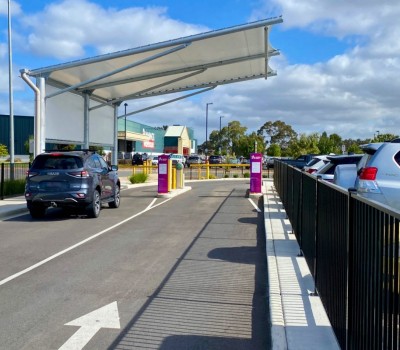

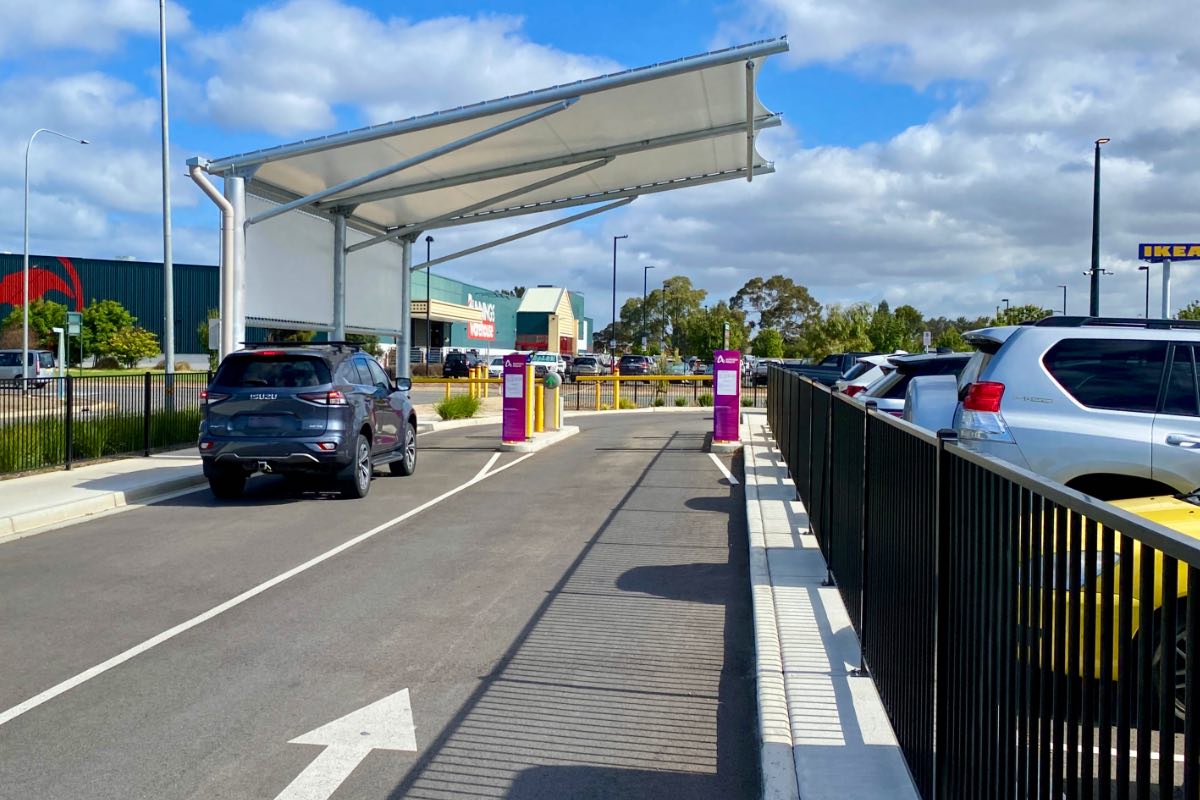

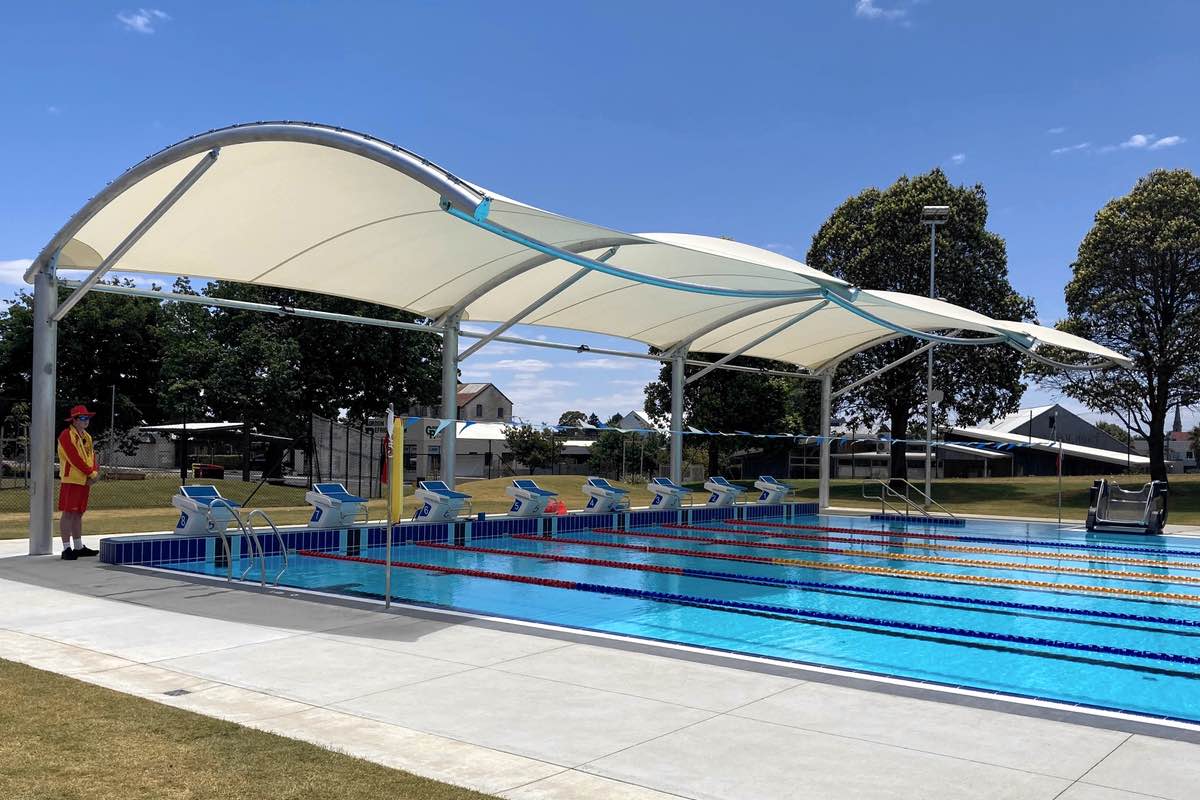

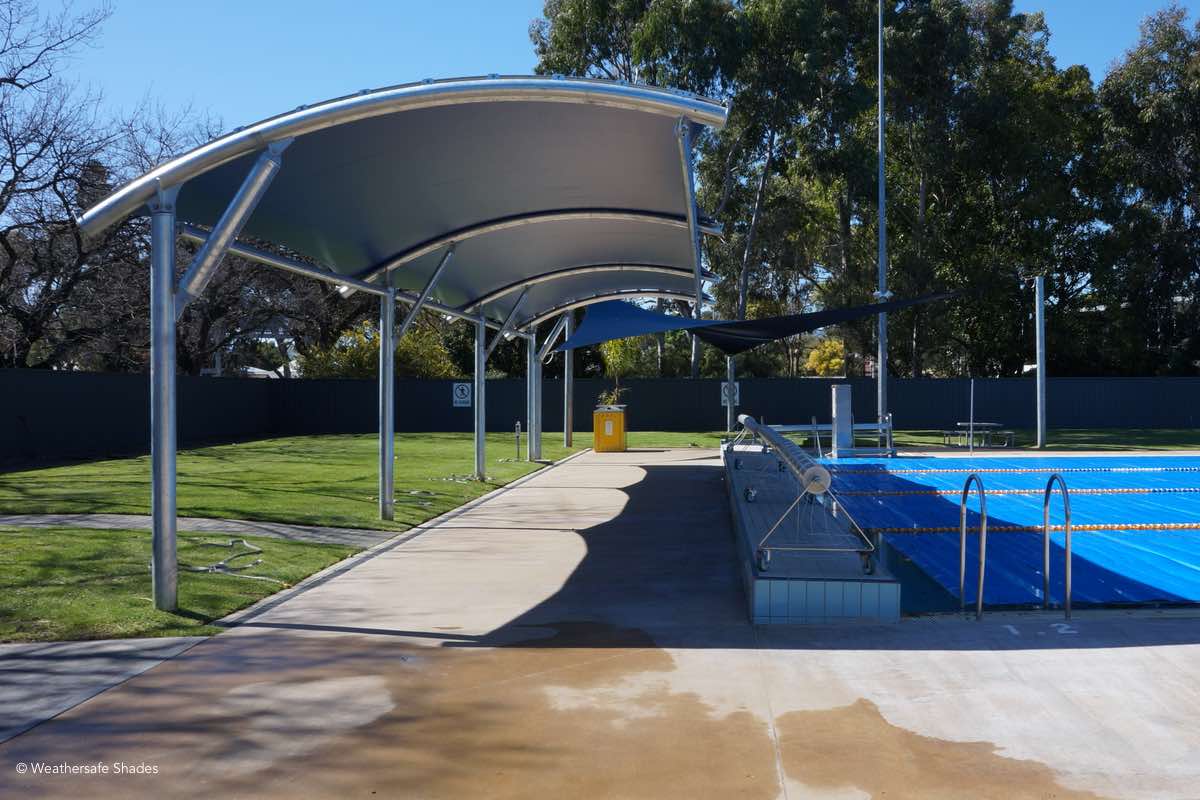

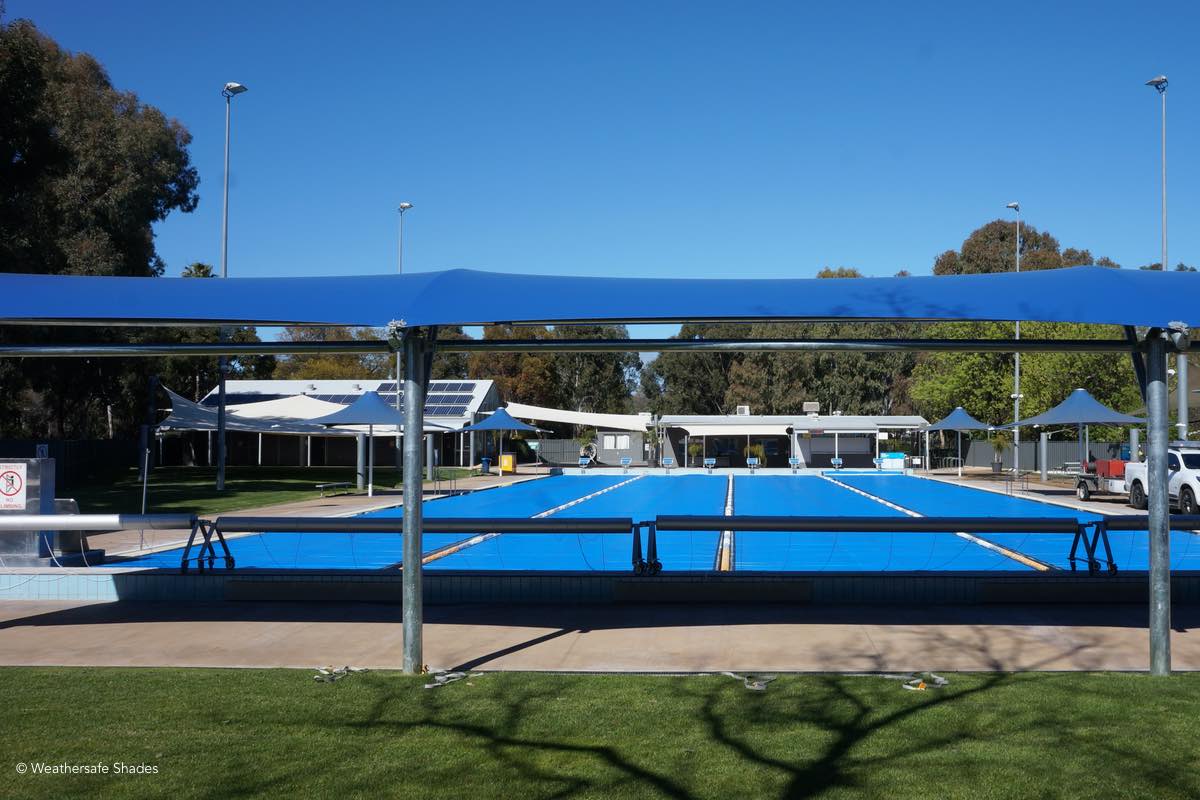

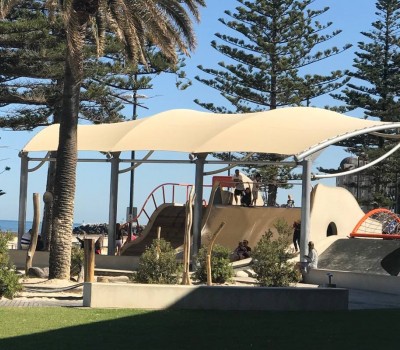

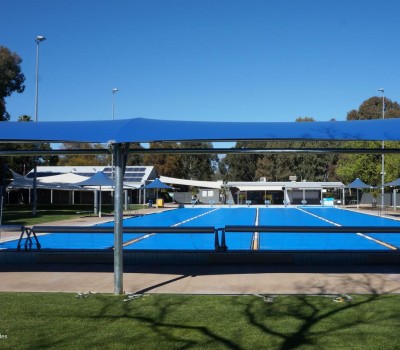

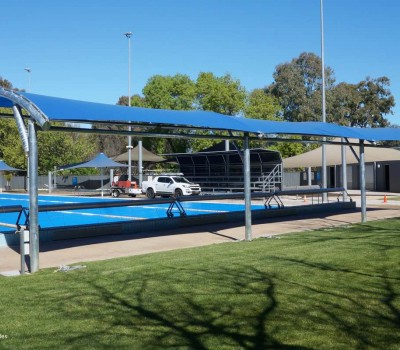

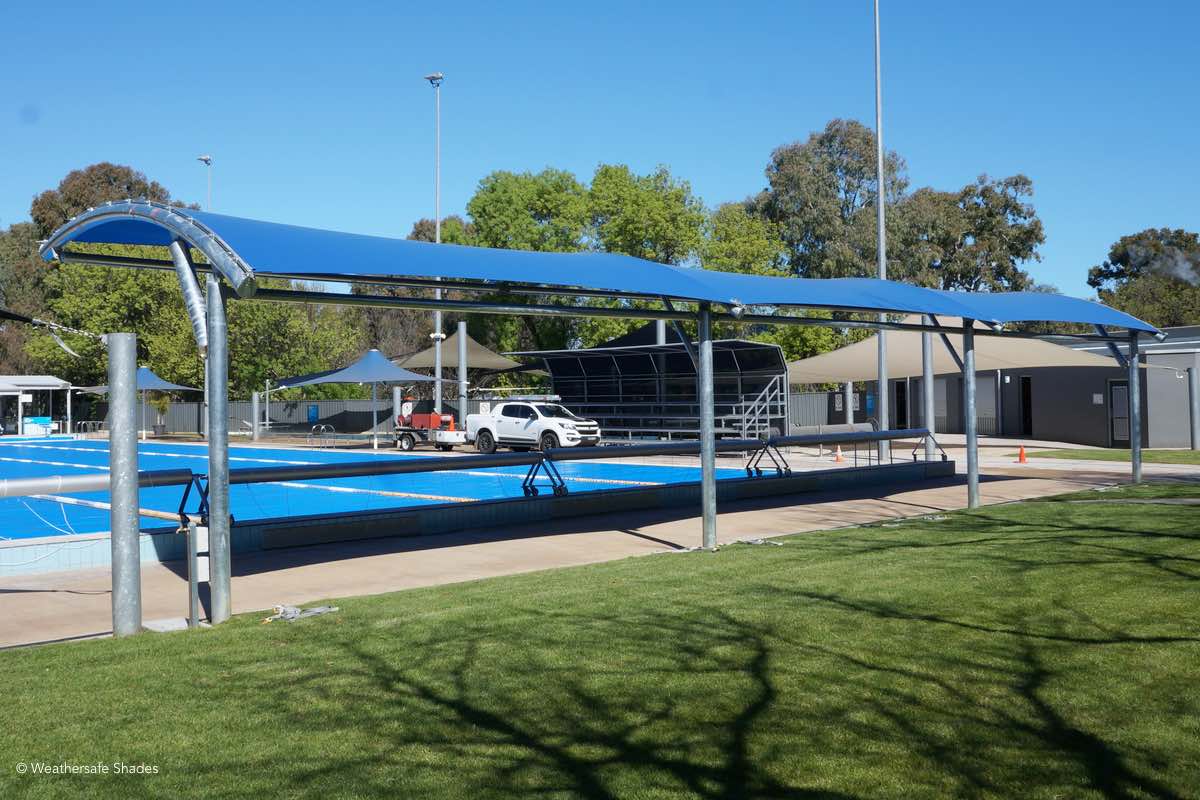

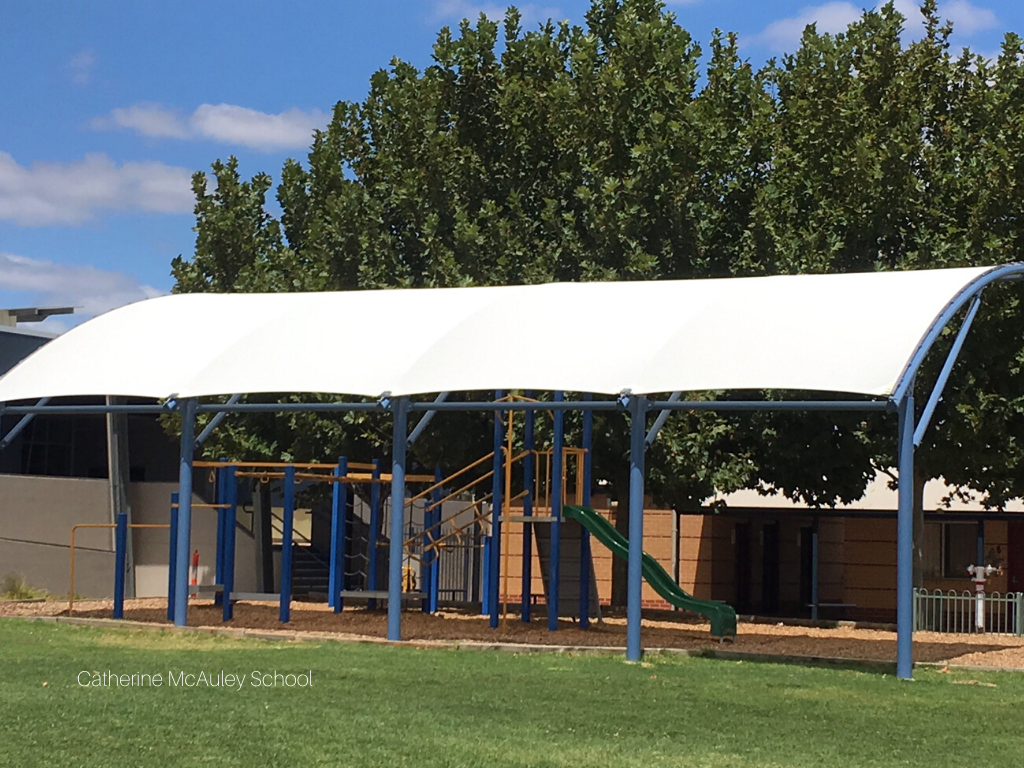

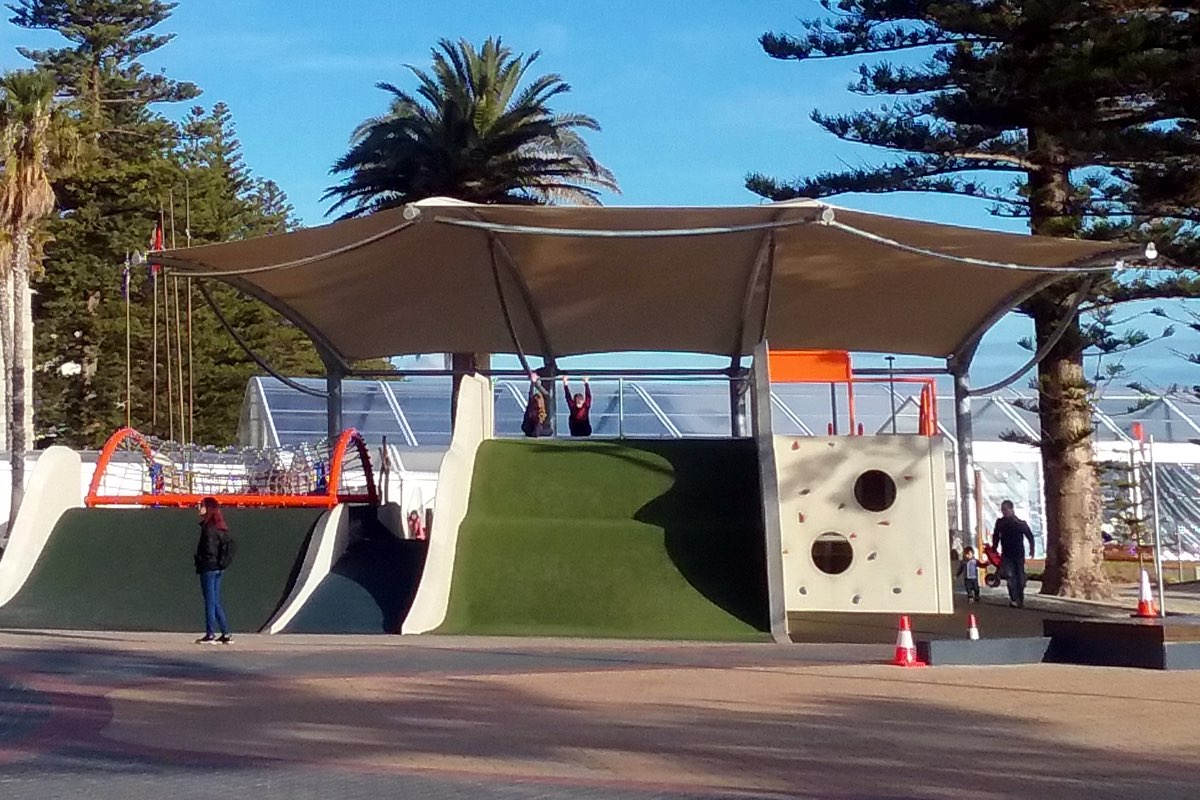

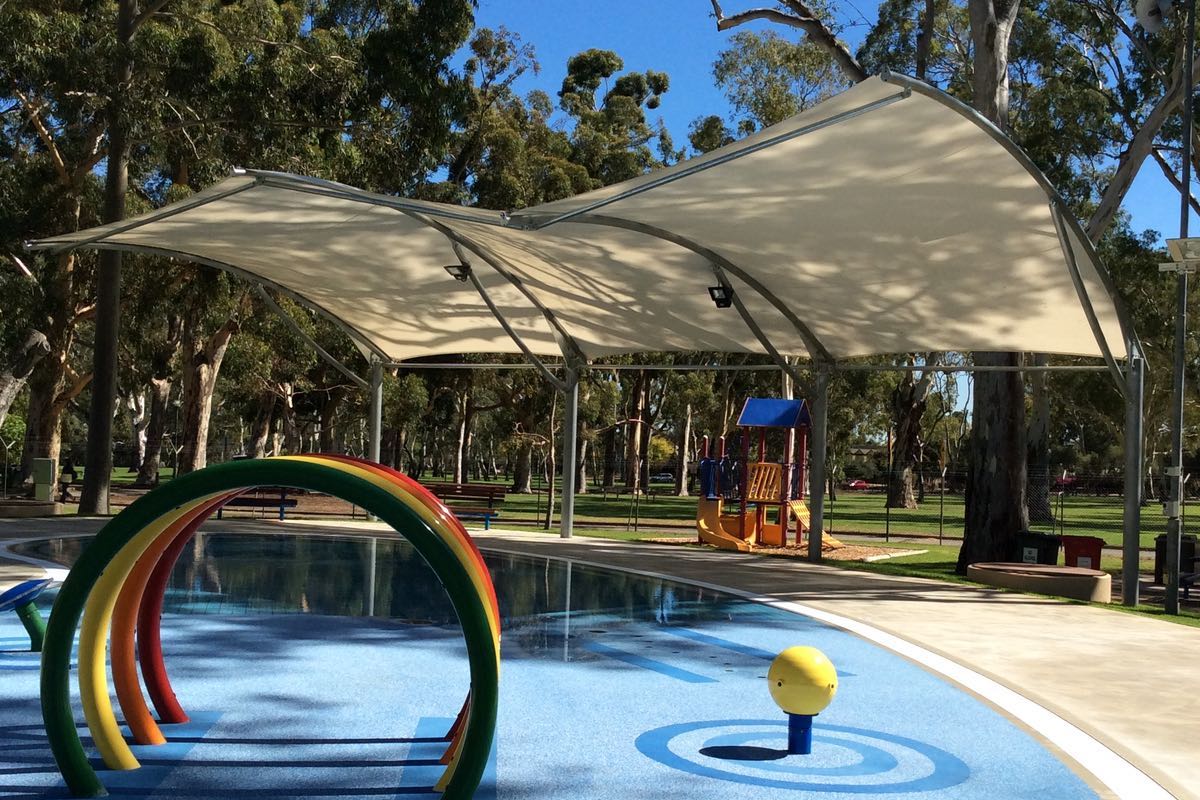

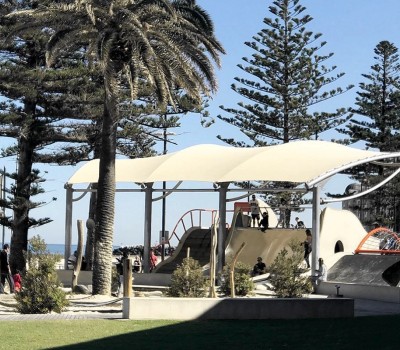

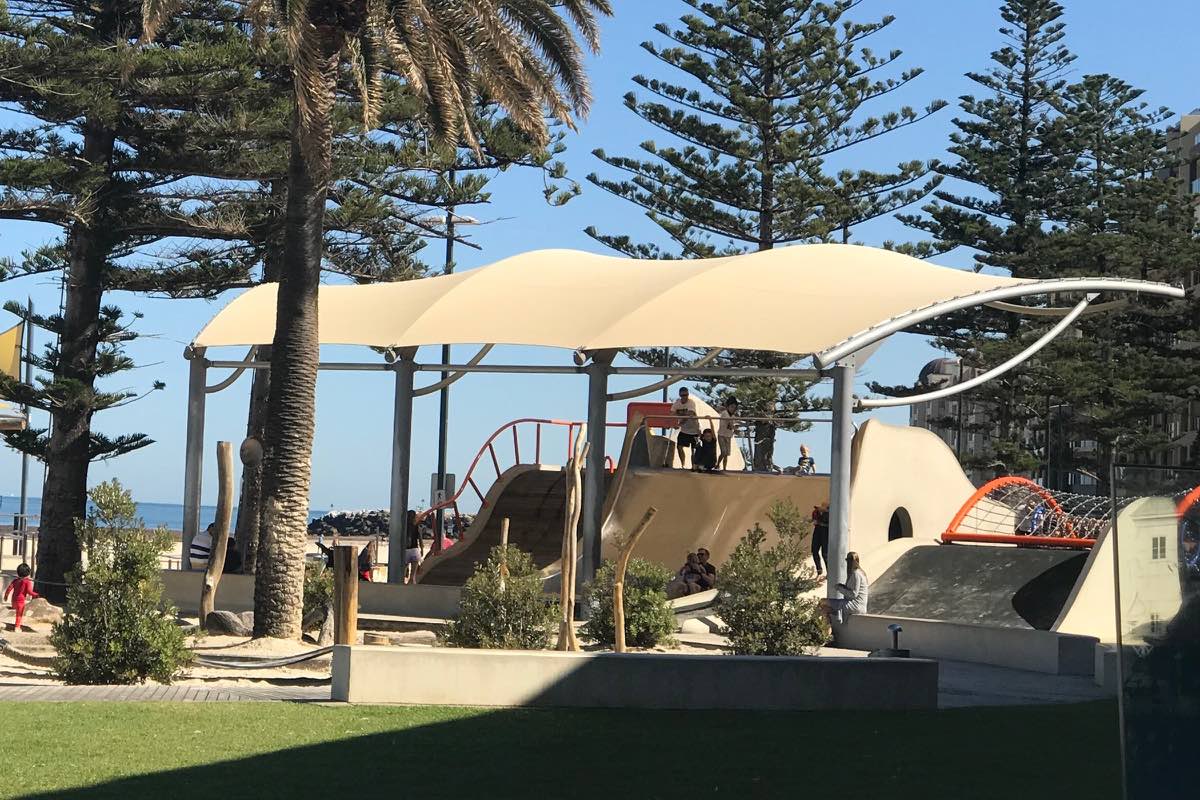

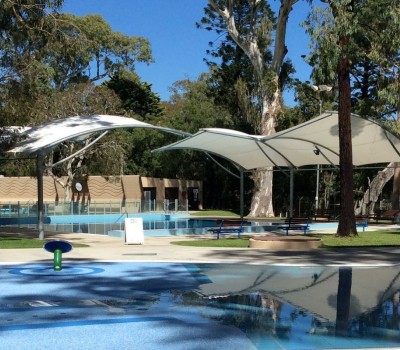

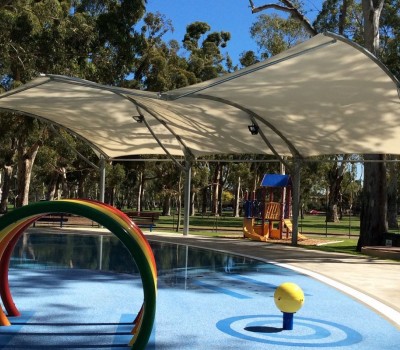

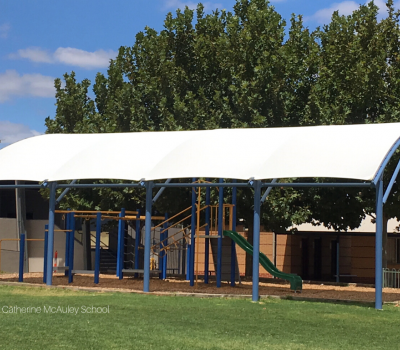

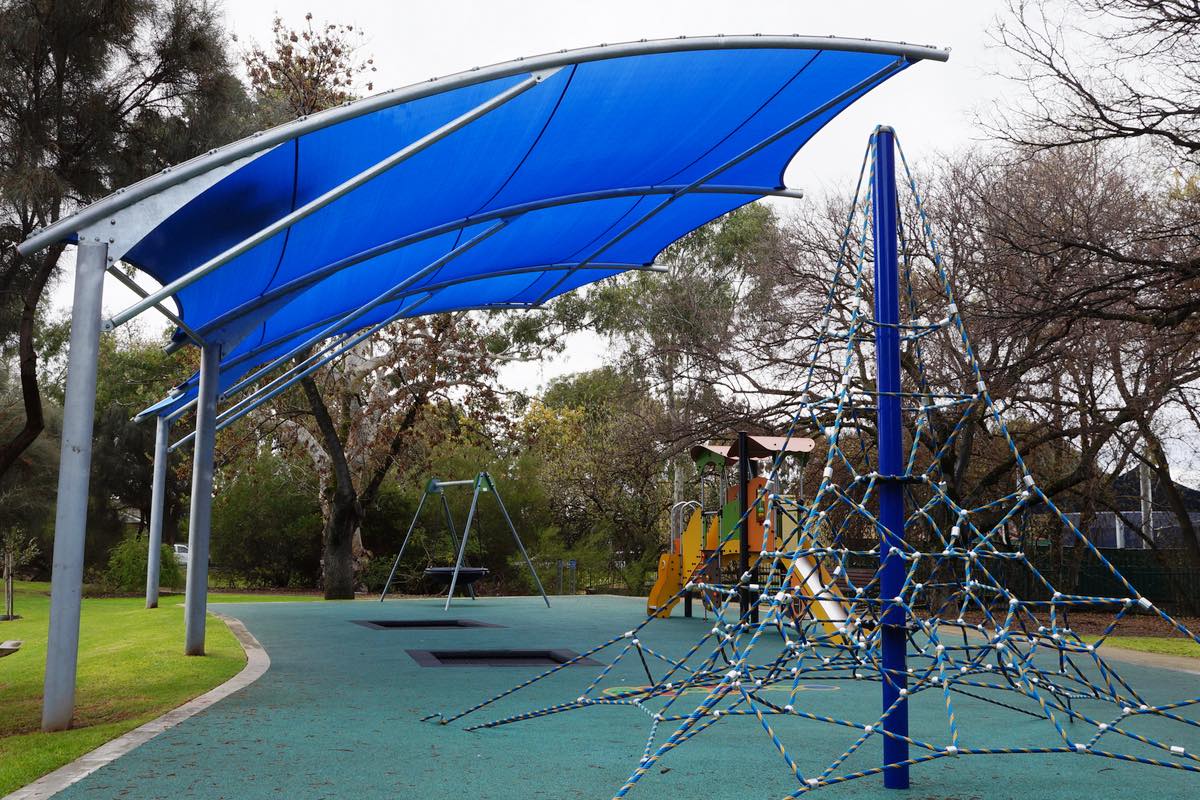

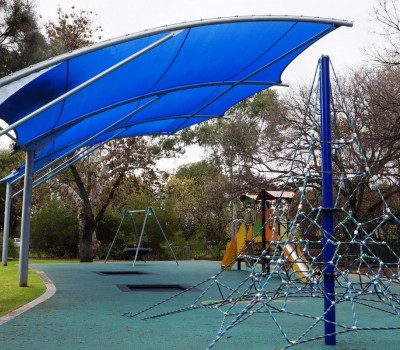

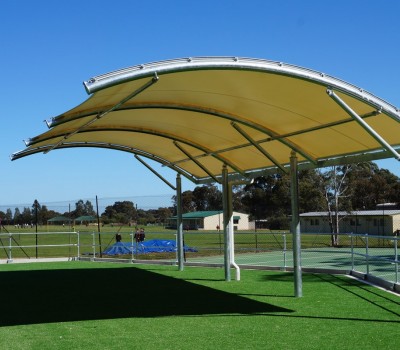

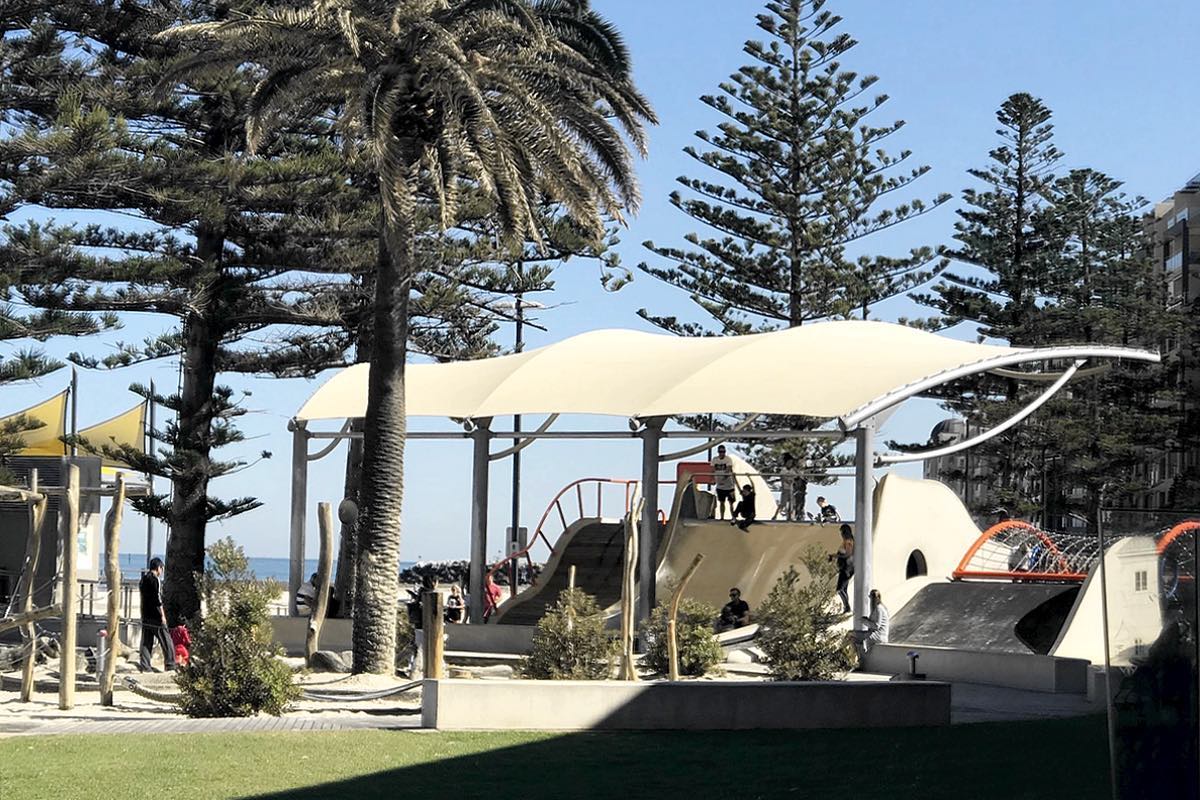

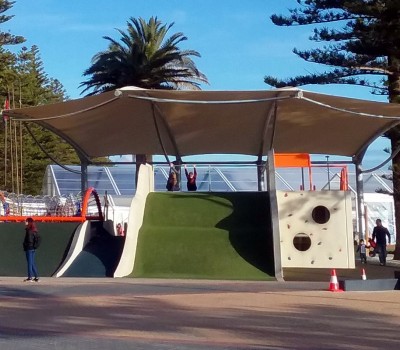

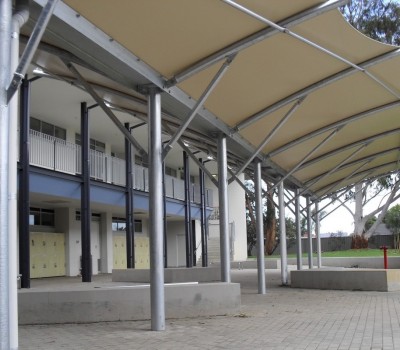

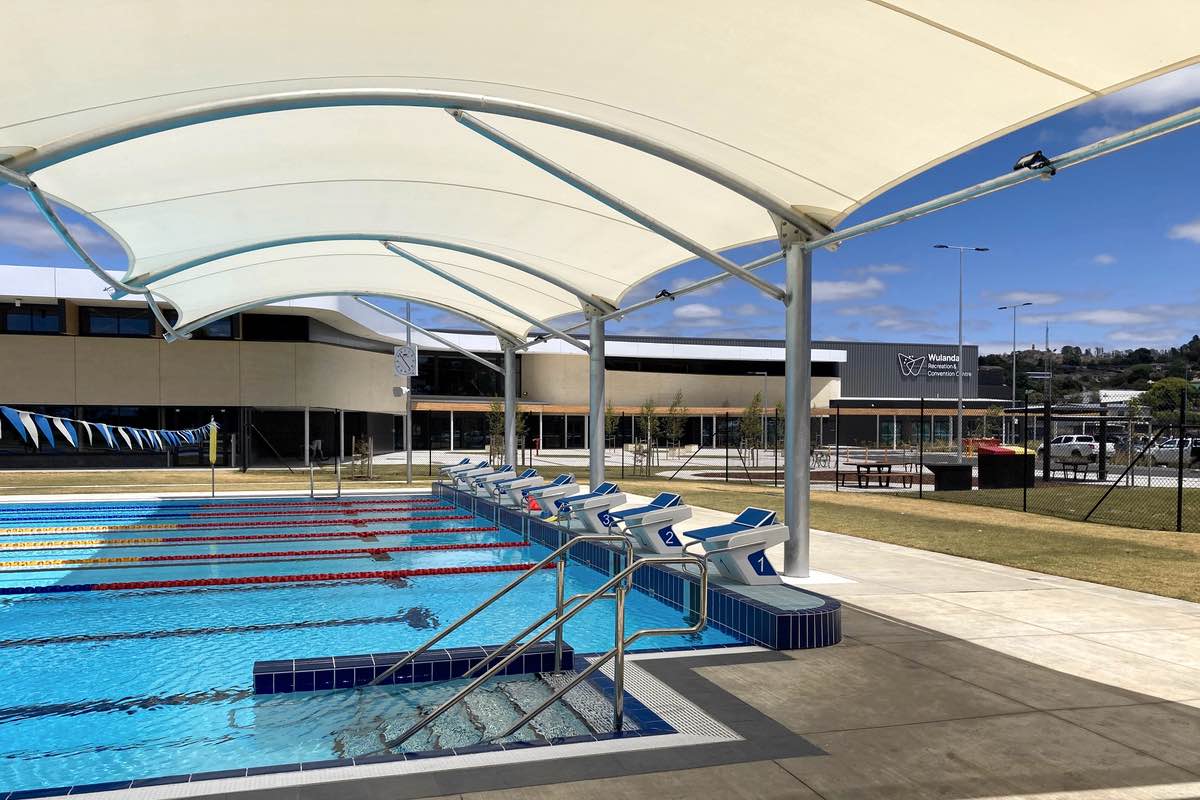

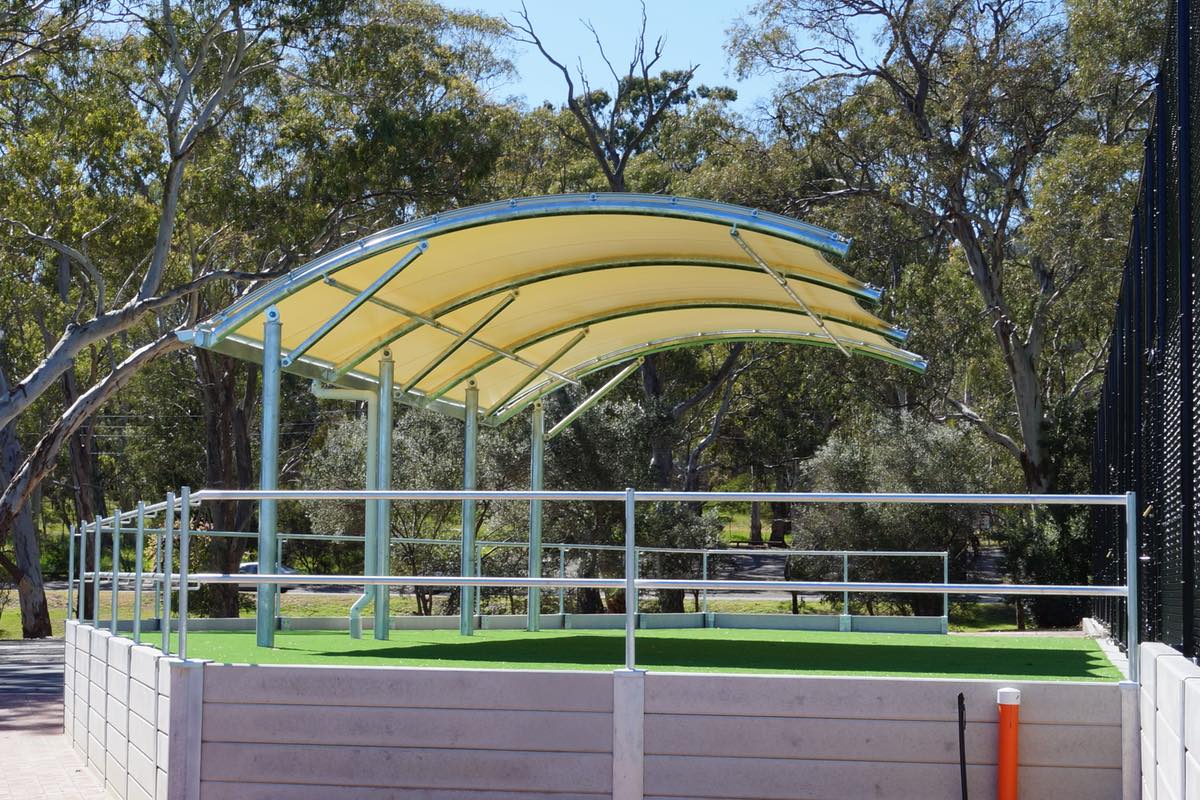

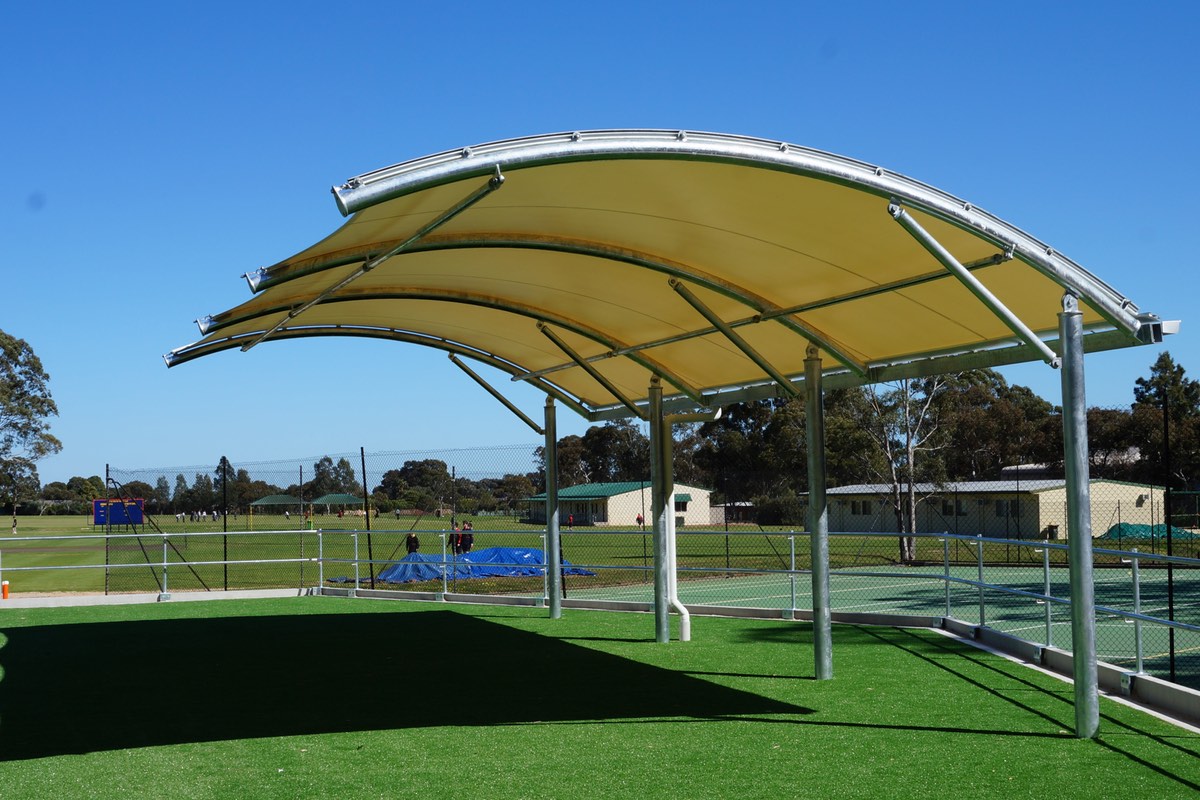

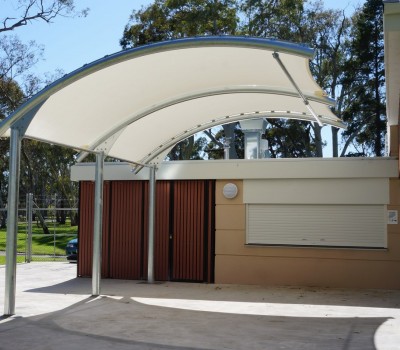

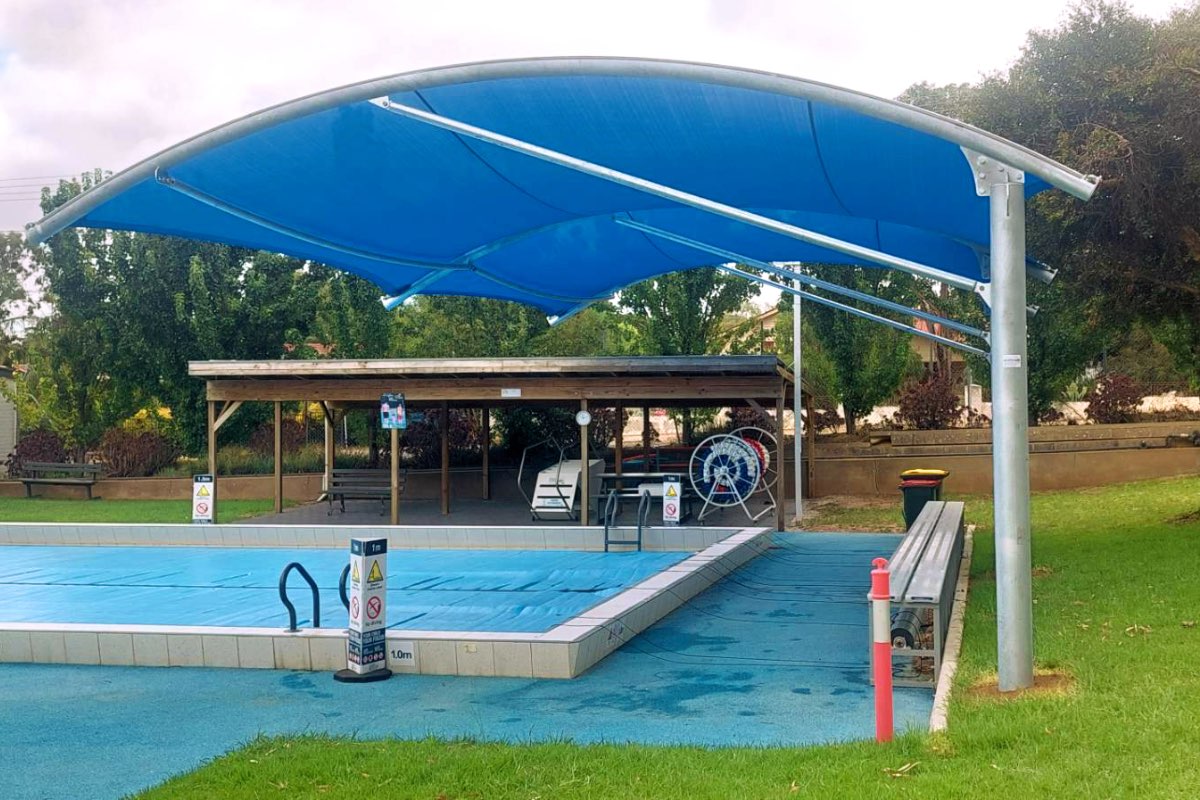

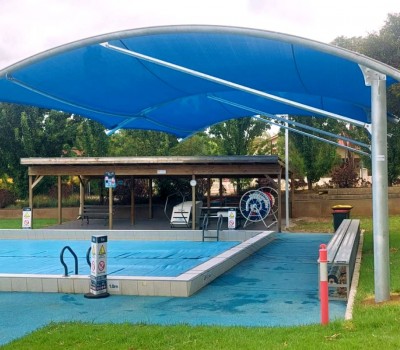

We install cantilever structures in a wide range of situations including playground areas, swimming pool covers, car park and car yard shade, public spaces, hotels and clubs.

Weathersafe Cantilever features

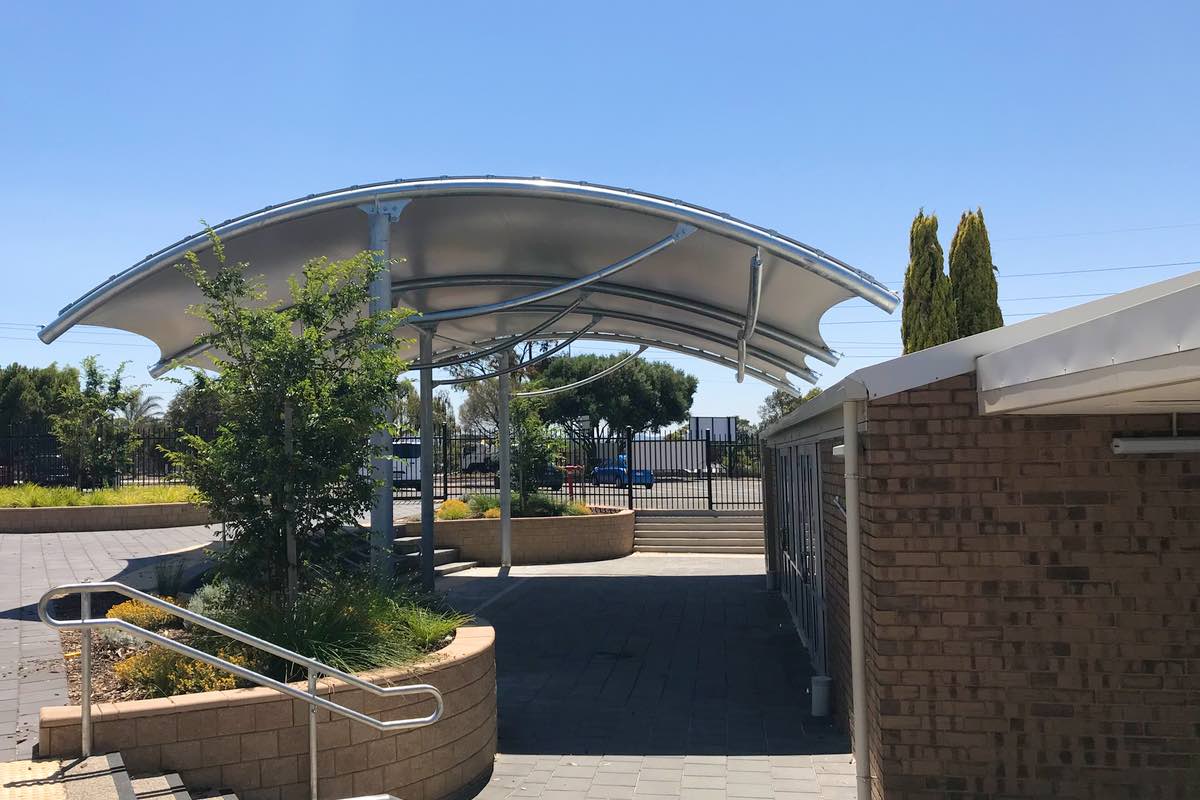

  • Cantilevers feature curved roof designs allowing plenty of natural light
  • Extensive design flexibility and options
  • Span great distances with only one row of columns
  • Individually designed & engineered to withstand winds up to 120km/h
  • Heavy duty galvanised and or powder coated frames
  • Available with long lasting and durable mesh fabric covers for cool, breathable shade
  • Or with waterproof PVC covers for all weather protection

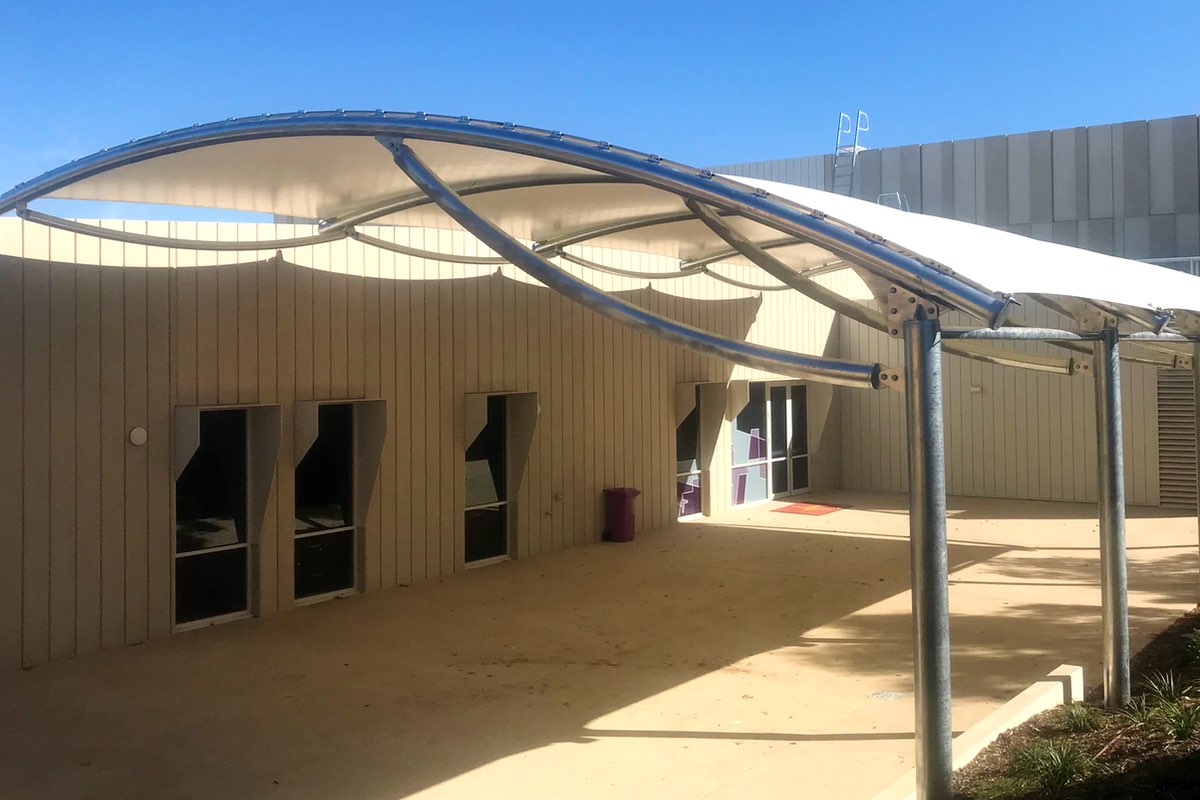

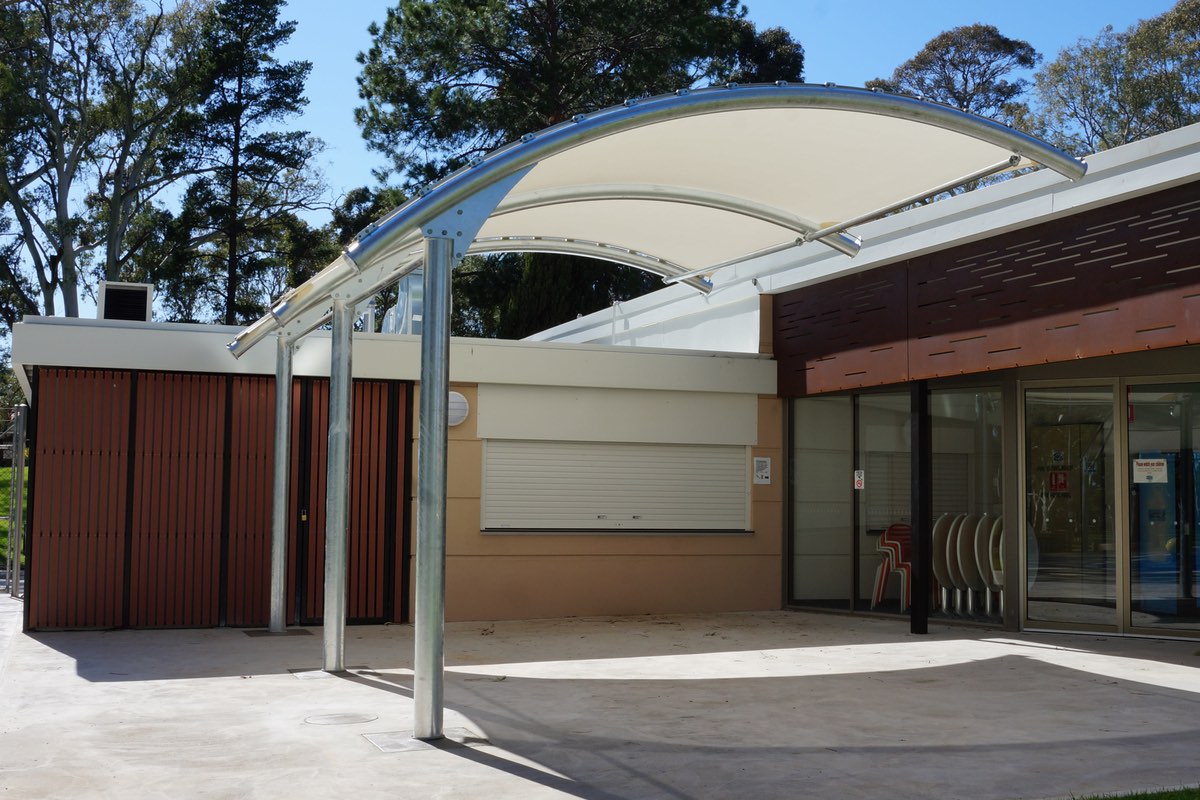

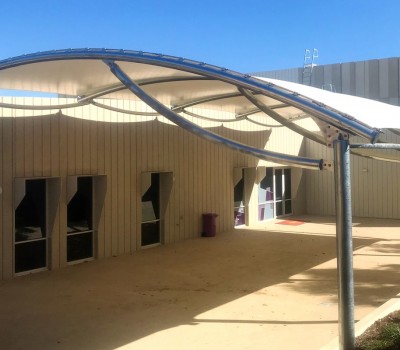

  • Available as cantilever or attached to a wall
  • Guttering options available
  • Heating and lighting options available

Typical applications:

Swimming pools, playgrounds, car parks, car dealerships and outdoor dining areas

Key design advantages:

Long projections, modular designs, open areas thanks to posts on one side
